MAKO SHARK
About
Collaboration
The Mako Shark is the product of a distinguished collaboration between renowned designer Rıza Tansu and the accomplished shipbuilders at Tufan and Brothers Yachting Company. This partnership fuses avant-garde aesthetic sensibility with technical mastery, resulting in a vessel that seamlessly marries visual impact with exceptional build quality and performance standards.

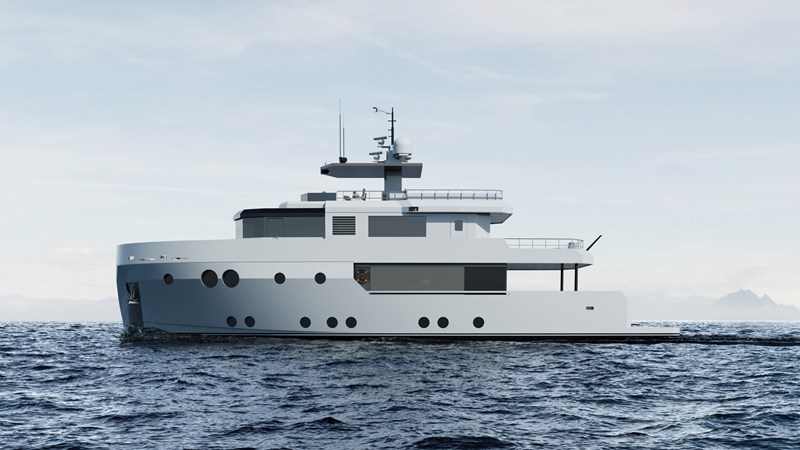

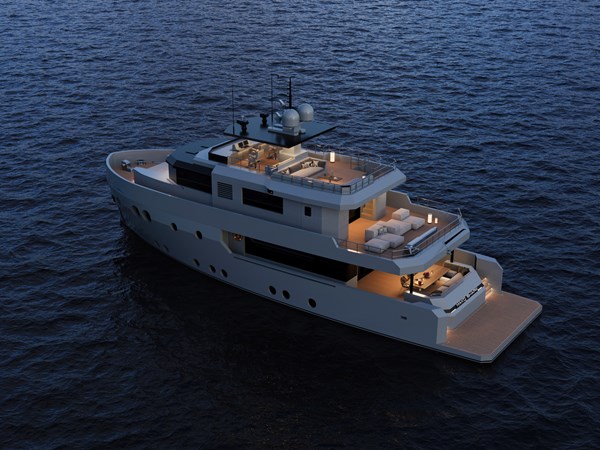

Exterior Design

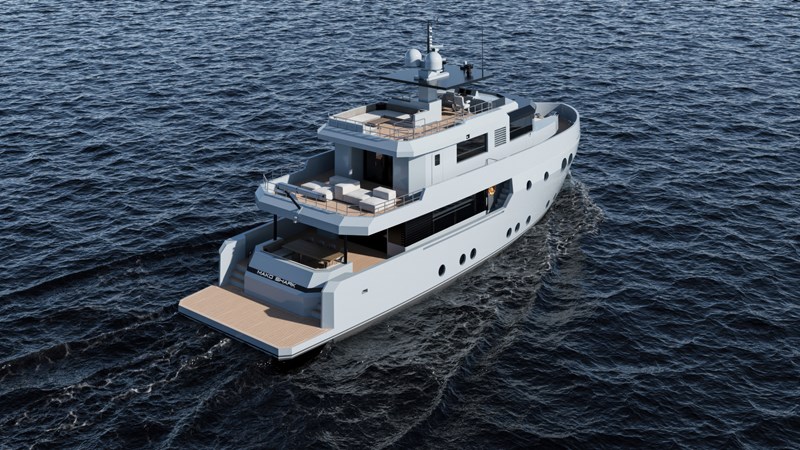

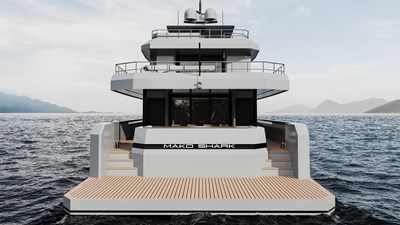

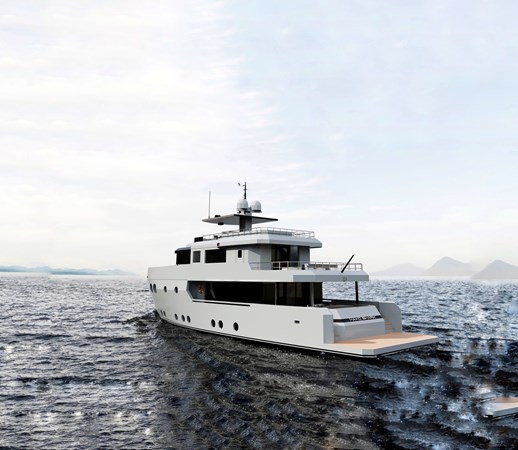

The Mako Shark showcases a bold, military-inspired exterior defined by angular lines and a commanding silhouette—hallmarks of Rıza Tansu’s iconic and serial award winning design language. Its assertive presence is both purposeful and visually arresting, reflecting the yacht’s expedition-ready ethos.
Interior Layout
The interior of the Mako Shark is conceived to balance refined luxury with functionality. Expansive living areas, meticulously crafted furnishings, and a thoughtfully considered layout create an ambiance of understated elegance and comfort, ideal for extended cruising.
Performance
The Mako Shark is engineered for transoceanic range and operational versatility. Her design emphasizes stability, endurance, and efficiency, making her exceptionally capable in diverse sea conditions. Her redundant systems allow her owners peace of mind while exploring the farthest corners of the oceans.
Inspiration and Concept
Rooted in the core principles of expedition, elegance, and purpose-driven design, the Mako Shark draws inspiration from its namesake—the agile and powerful mako shark. This concept is expressed through a sleek, muscular form and a naval architecture that prioritizes strength, adaptability, and precision handling across a variety of marine environments.
GENERAL INFORMATION
Yacht Name: MAKO SHARK
Builder: Tufan and Brothers
Designer / Interior Concept: Rıza Tansu
Type: Explorer Yacht
Naval Architecture & Engineering: Tufan and Brothers
Project Management: Tufan and Brothers
DIMENSIONS
Length Overall (LOA): 26.5 m
Waterline Length (LWL): 23.3 m
Beam: 7.63 m
Draft: 1.8 m
Gross Tonnage (GRT): 200
Full Load Displacement: 145 tonnes
CAPACITY
Guests: 10
Crew: 4–5
Fuel Capacity: 22,500 liters
Fresh Water: 2,500 liters
Black / Grey Water: 2,000 liters each
Range:
3,000 nm @ 9 knots
4,500 nm @ 8 knots
PERFORMANCE
Cruising Speed: 10 knots
Max Speed (1/4 Load): 13 knots
PROPULSION
Engines: 2 x CUMMINS X15, 630 HP
Gearboxes: ZF 1:3.000
Propellers: 2 x 1100 mm 5-blade, Ni.Al.Br
Bow Thruster: Side Power SH550
Stabilizers: Humphree Zero Speed Fins
Steering: Electro-Hydraulic
STRUCTURE
Hull Material: Marine Grade Steel
Superstructure: Marine Grade Aluminium
Hull Type: Full Displacement
ELECTRICAL & POWER SYSTEM
Generators: 2 x KOHLER 28 kW
Battery System: 12 x Mastervolt Lithium-Ion (66 kW)
Inverter/Chargers: 6 x Mastervolt Combi Pro 24/3500-100
Shore Power Transformer: 30 kVa
COMFORT & INTERIOR
Stabilization: Zero-speed fins & rockwool insulation
Air Conditioning: CRUISAIR – 2 x 72,000 BTU units with multiple fan coils
Watermaker: 1 x Horizon Seafari 225
Jacuzzi Pump: TF TC25/1
SAFETY & FIRE SYSTEMS
Fire Suppression: FM200 system in engine room
Sprinklers: Automatic system throughout interior
Bilge System: 400 lt/min Gianneschi
Life Rafts: 2 x 6-person units
Life Saving Equipment: Life jackets, buoys, fire detection, extinguishers
NAVIGATION & ELECTRONICS
Radar: SIMRAD HALO 3
Displays: 2 x SIMRAD NSO-16 EVO3
Autopilot, GPS, AIS, VHF, Weather Station: SIMRAD Suite
4G Internet: TP-Link Deco Mesh

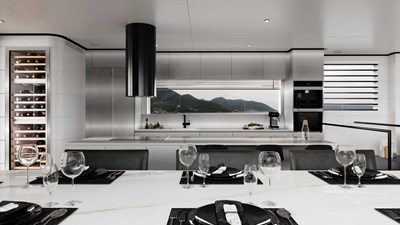

GALLEY & INTERIOR EQUIPMENT
Appliances: Full Siemens package – oven, cooktop, hood, dishwasher, fridge, freezer
Additional: Wine cooler, ice makers, minibar units
ENTERTAINMENT
TVs: Samsung 32" to 55" in main areas and cabins
Audio: Yamaha soundbars, JL Audio deck speakers, HELIX amplifiers
EXTERIOR & DECK
Lighting: Foresti Suardi
Gangway: Opacmare
Deck Hatches & Doors: EMA watertight systems
Basic Information
- Builder: TUFAN AND BROTHERS
- Category: Motor Yacht
- Model: MAKO SHARK
- Model Year: 2027
- YearBuilt: 2027
- Country: United States
Dimensions
- LOA: 86' 11" (26.49m)
- Beam: 25' (7.62m)
- Min Draft: 5' 9" (1.75m)
- Max Draft: 5' 9" (1.75m)
Speed / Weight
- Cruise Speed: 10 Knots Knots
- Cruise Speed Range: 4500 Miles
- Max Speed: 13 Knots Knots
- Cruise Speed Range: 4500 Miles
- Gross Tonnage: 120.00 Pounds
- Fuel Capacity: 5900 Gal Gallons
Accomodation
- Berths: 5
- Heads: 6
- Sleeps: 10
- State Rooms: 5
- Crew Berths: 3
- Crew Sleeps: 5
- Captains Quarters: No
Hull & Deck
- Hull ID: MAKO00000004
- Hull Material: Steel
- Deck Material: Teak
- Hull Configuration: Full Displacement
- Hull Designer: Riza Tansu
- Hull Finish: Awlgrip
- Exterior Designer: Riza Tansu
- Interior Designer: Riza Tansu
Engine Information
- Engine Count: 2
- Manufacturer: Cummins
- Model: X15
- Engine Type: Inboard
- Fuel Type: Diesel
