NIRVANA
About

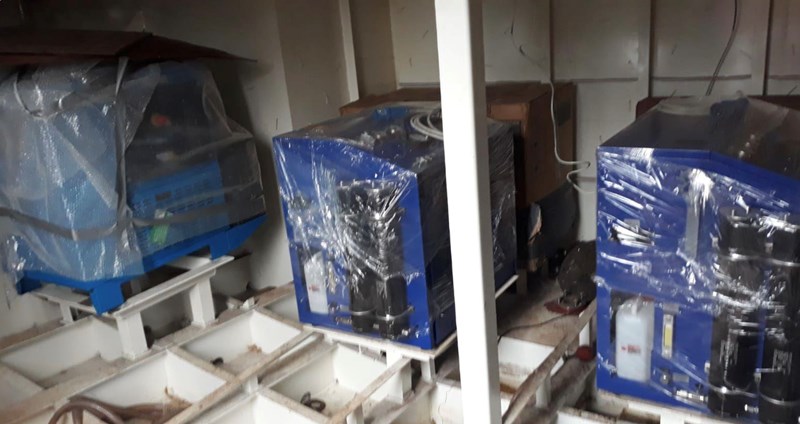

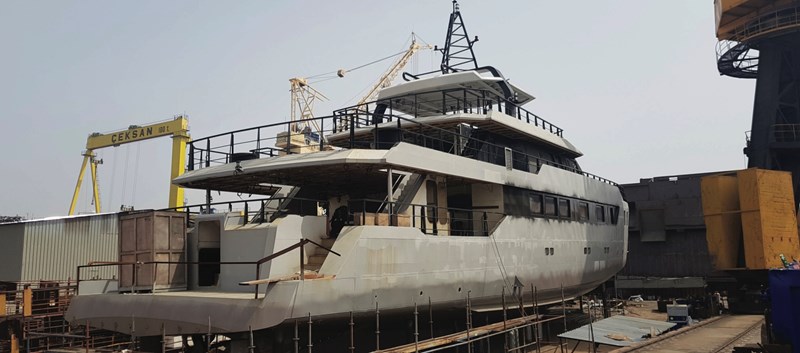

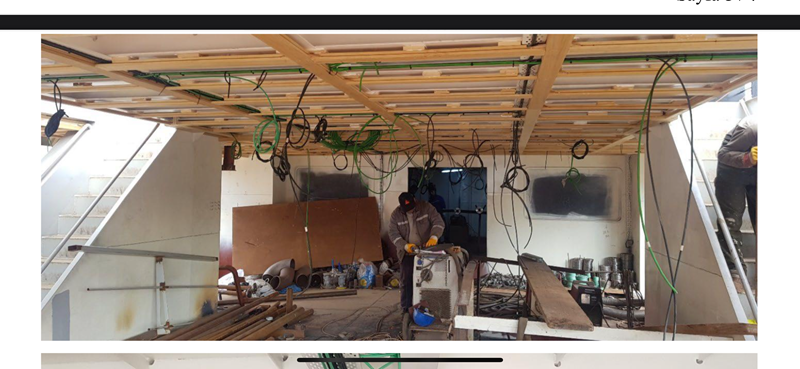

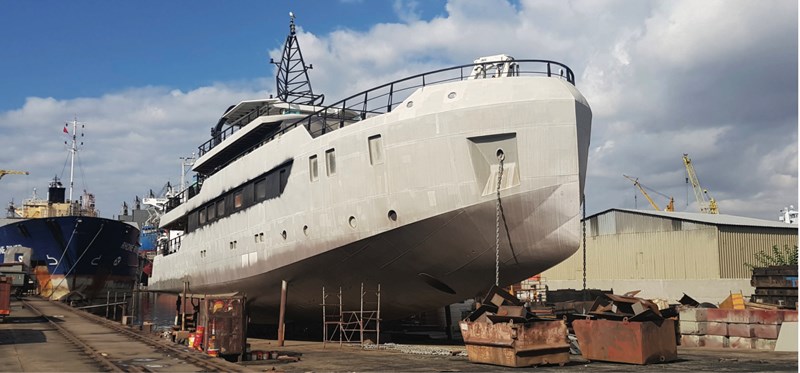

This yacht has been partially constructed and currently remains in the condition shown in the photos. It is available for purchase as-is at the listed price, or alternatively, you may acquire and complete the construction to your own specifications.
Specifications
General Information
Yacht Name: 40 M SOYASLAN N130
Type: Passenger Yacht
Flag: Palau
Classification: Bureau Veritas (✠ HULL • MACH CHARTER YACHT – motor – S Unrestricted Navigation)
Dimensions
Length Overall (LOA): 39.95 m
Waterline Length (LWL): 39.81 m
Beam: 9.00 m
Draft: 2.30 m
Depth: 4.03 m
Gross Tonnage: 390 GT
Displacement: 316 tonnes
Performance
Maximum Speed: 14 knots
Cruising Speed: 12 knots
Capacity
Guest Capacity: 24 passengers
Crew Capacity: 13

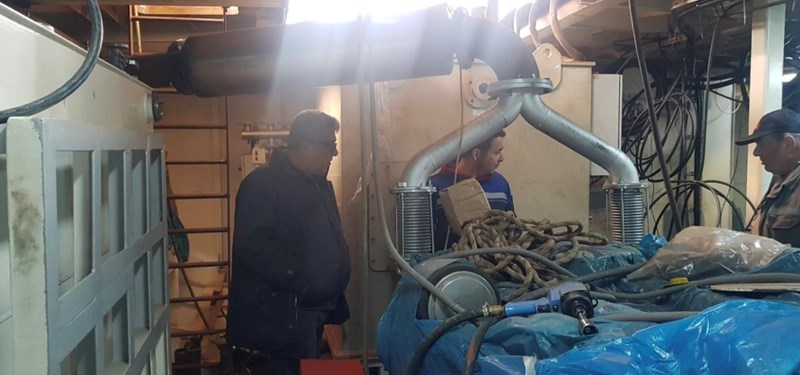

Engines & Machinery
Main Engines: 2 × Doosan 4V222TIH (588 kW @ 1800 RPM)
Reduction Gears: 2 × Doosan (3.02:1, with trolling valve)

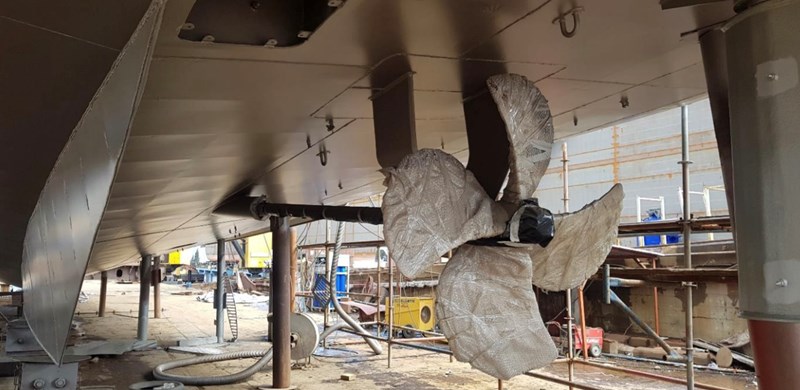

Propellers: 2 × 1275 mm, 4-blade ERC propellers

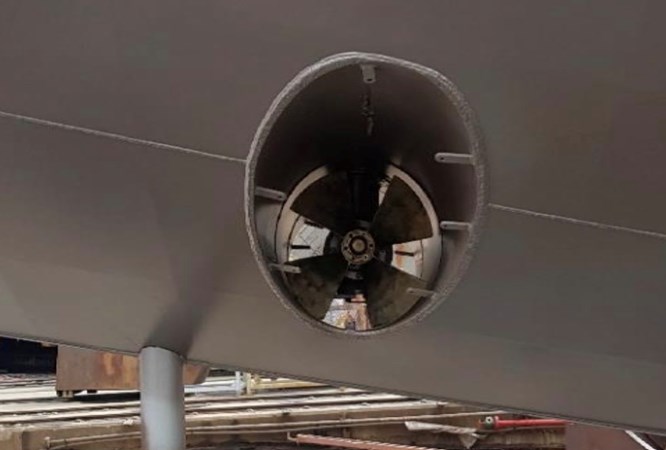

Bow Thruster: 55 kW ERC
Generators: 2 × Doosan AD136 (93 kW each)
Sewage Treatment: ACO Clarimar MF3 with vacuum interface
Electrical & Systems

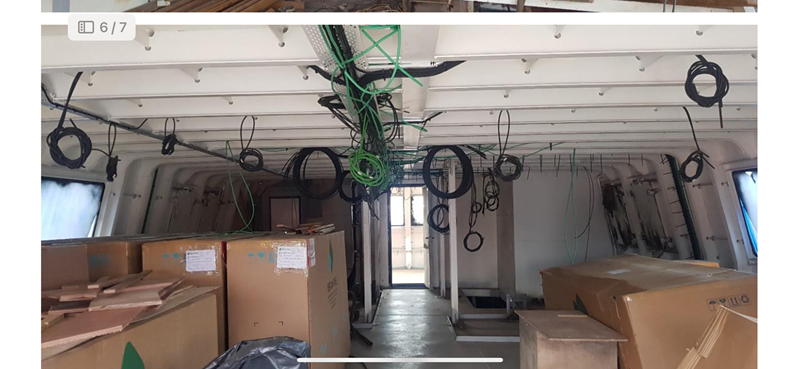

Electrical System: BV certified wiring & distribution panels
Navigation lights installation completed

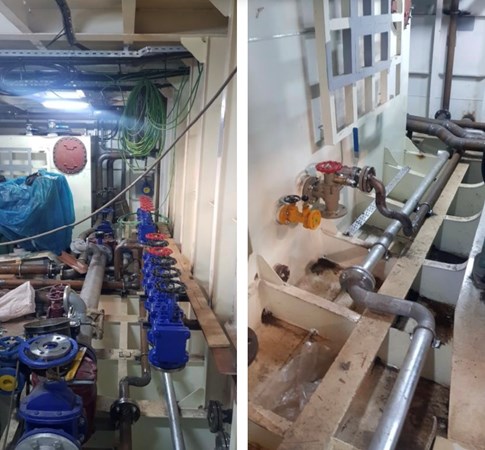

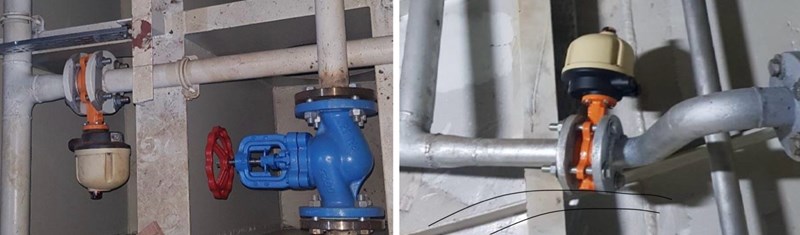

Bilge & fire systems with electric-controlled valves
Outfitting
Anchors: 2 × 360 kg HHP with 275 m chain (BV certified)
Anchor Windlasses & Capstans: DATA brand with steel bell
Steering Gear & Rudders: DATA brand
Hydraulic Fore Crane: 10 ton.m with electro-hydraulic power pack
Air Conditioning: 360,000 BTU chilled water system with fresh air makeup units
Watertight doors (in-house designed & tested)
Scuba Compressors: 1 × Coltri LP 300, 2 × Coltri MCH16 Mark 3
56 Aluminum Anodes (5-year replacement cycle)
Basic Information
- Builder: SOYASLAN MARINE
- Category: Motor Yacht
- Model: SOYASLAN CUSTOM
- Model Year: 2027
- YearBuilt: 2027
- Country: Turkey
- Fly Bridge: 1
Dimensions
- LOA: 131' 1" (39.95m)
- LOD: 130' 8" (39.81m)
- Beam: 29' 7" (9m)
- Min Draft: 6' 8" (2.03m)
- Max Draft: 13' 3" (4.03m)
Speed / Weight
- Cruise Speed: 12 Knots Knots
- Max Speed: 14 Knots Knots
- Gross Tonnage: 390.00 Pounds
Accomodation
- Berths: 24
- Heads: 10
- Sleeps: 24
- State Rooms: 12
- Captains Quarters: No
Hull & Deck
- Hull ID: N/A
- Hull Material: Steel
- Deck Material: Teak
- Hull Designer: SOYASLAN YACHTS
- Exterior Designer: SOYASLAN YACHTS
- Interior Designer: SOYASLAN DESIGN
Engine Information
- Engine Count: 2
- Manufacturer: DOOSAN
- Model: 4V222TIH 588 kW
- Engine Type: Inboard
- Fuel Type: Diesel
