NIRVANA
About

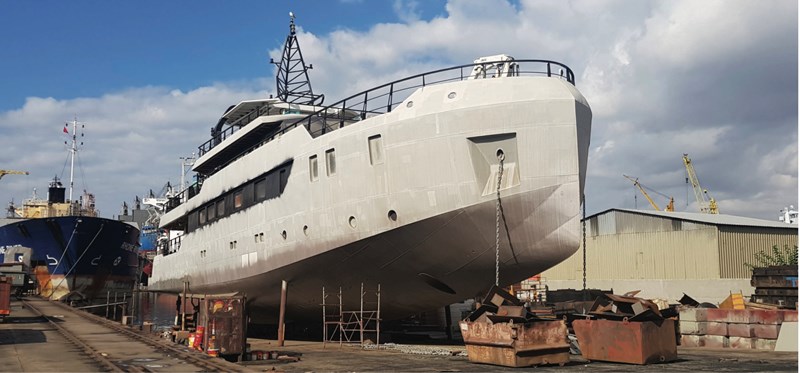

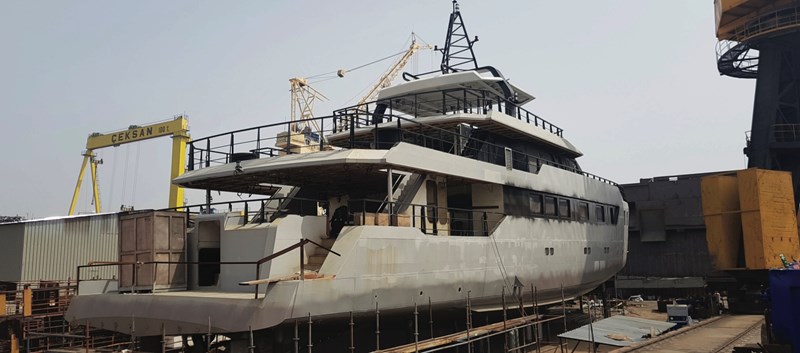

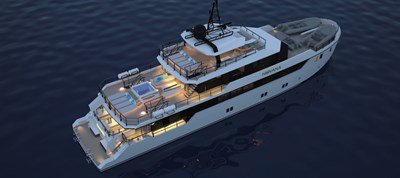

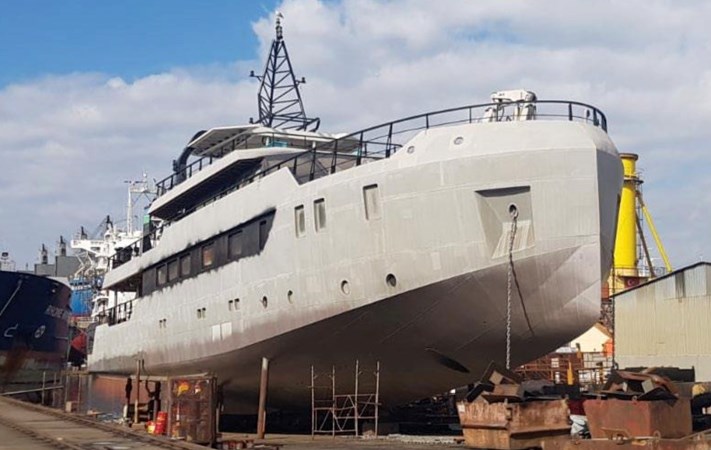

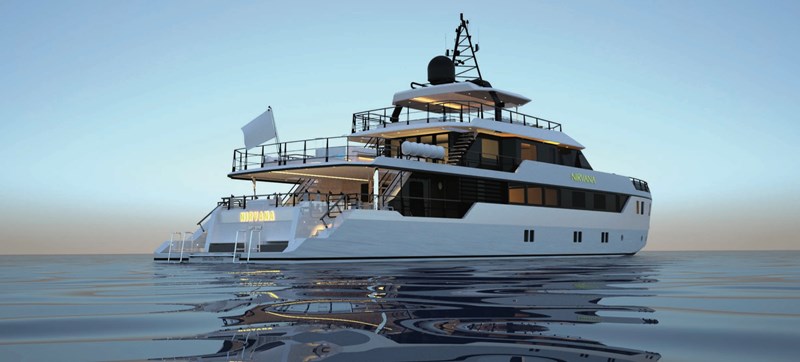

This 39.95m passenger yacht project was left in an unfinished state and remains as shown. Designed to accommodate 16 guests in 10 cabins, she offers generous volume and layout flexibility. The yacht is available for purchase as-is, or you may complete the construction and customize her to your requirements.
Specifications
General Information
Yacht Name: 40 M SOYASLAN N130
Type: Passenger Yacht
Flag: Palau
Classification: Bureau Veritas (✠ HULL • MACH CHARTER YACHT – motor – S Unrestricted Navigation)
Dimensions
Length Overall (LOA): 39.95 m
Waterline Length (LWL): 39.81 m
Beam: 9.00 m
Draft: 2.30 m
Depth: 4.03 m
Gross Tonnage: 390 GT
Displacement: 316 tonnes
Performance
Maximum Speed: 14 knots
Cruising Speed: 12 knots
Capacity
Guest Capacity: 24 passengers
Crew Capacity: 13
Engines & Machinery

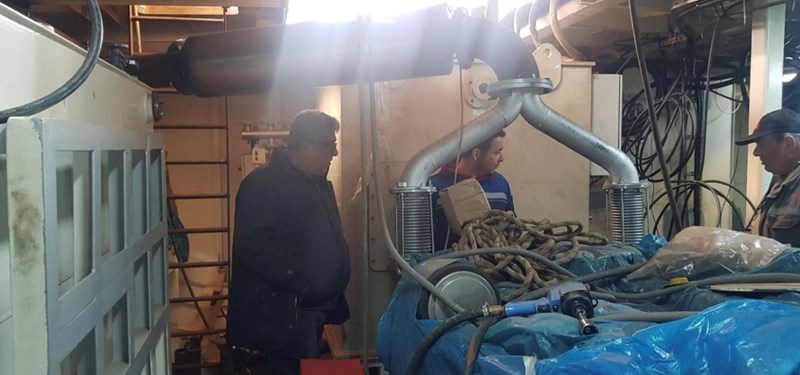

Main Engines: 2 × Doosan 4V222TIH (588 kW @ 1800 RPM)
Reduction Gears: 2 × Doosan (3.02:1, with trolling valve)

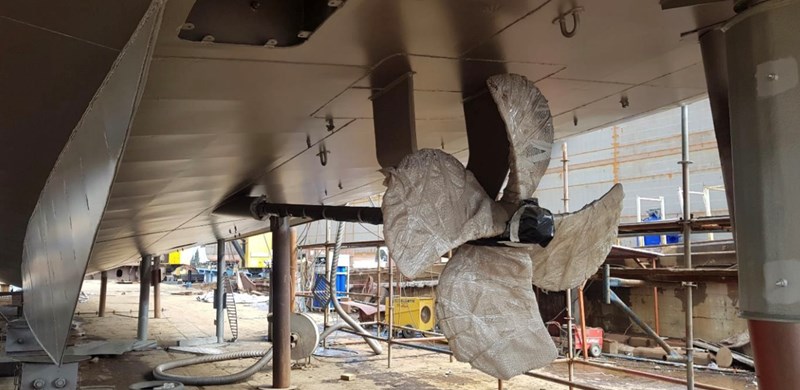

Propellers: 2 × 1275 mm, 4-blade ERC propellers

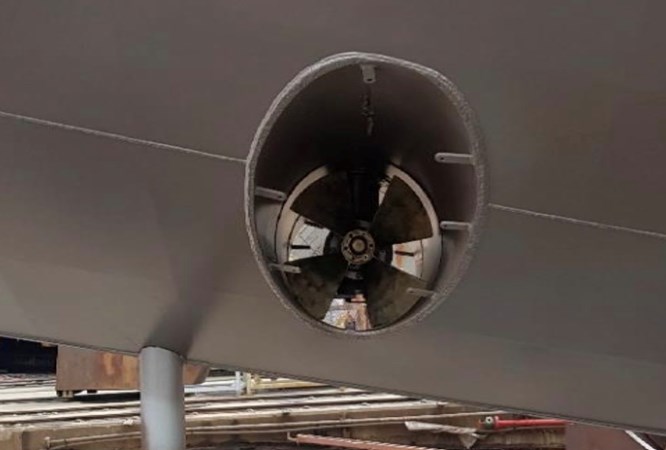

Bow Thruster: 55 kW ERC
Generators: 2 × Doosan AD136 (93 kW each)
Sewage Treatment: ACO Clarimar MF3 with vacuum interface
Electrical & Systems

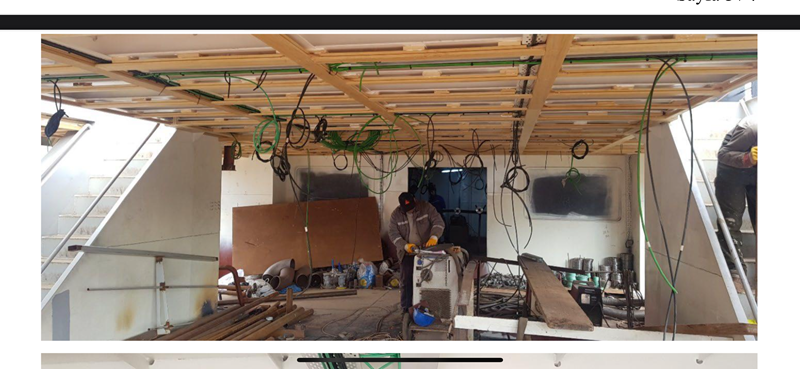

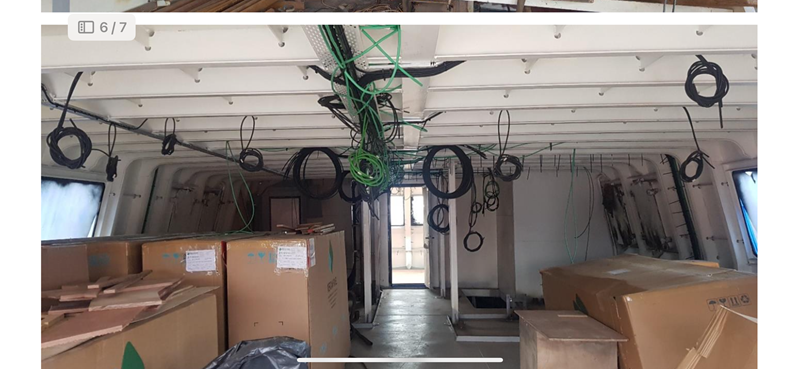

Electrical System: BV certified wiring & distribution panels
Navigation lights installation completed

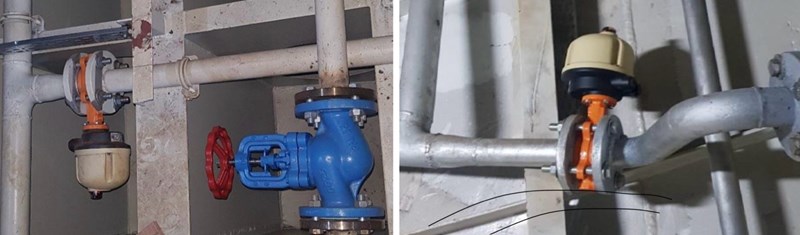

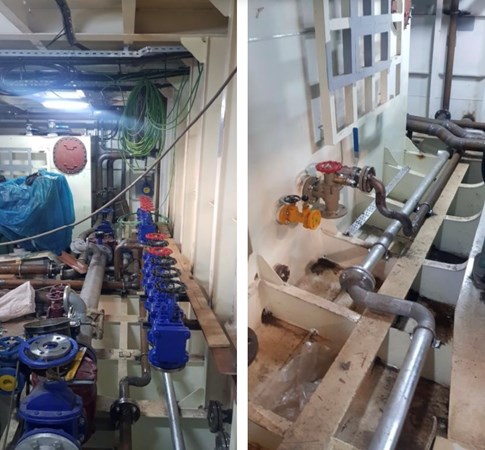

Bilge & fire systems with electric-controlled valves
Outfitting
Anchors: 2 × 360 kg HHP with 275 m chain (BV certified)
Anchor Windlasses & Capstans: DATA brand with steel bell
Steering Gear & Rudders: DATA brand

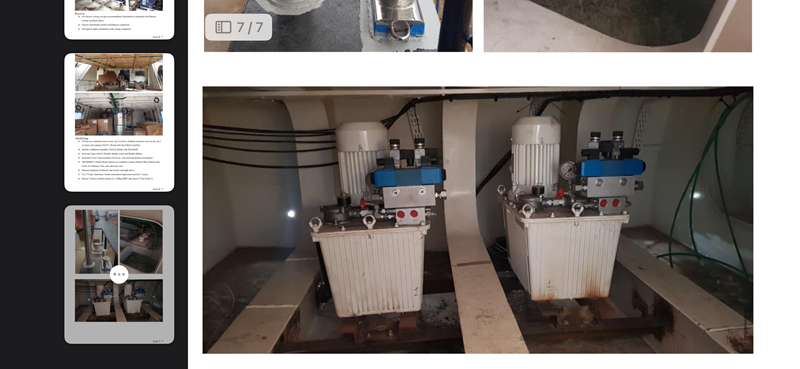

Hydraulic Fore Crane: 10 ton.m with electro-hydraulic power pack
Air Conditioning: 360,000 BTU chilled water system with fresh air makeup units
Watertight doors (in-house designed & tested)

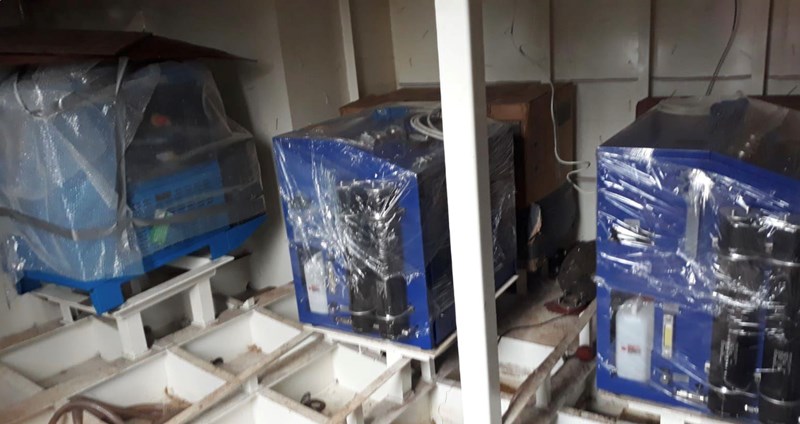

Scuba Compressors: 1 × Coltri LP 300, 2 × Coltri MCH16 Mark 3
56 Aluminum Anodes (5-year replacement cycle)
Basic Information
- Builder: SOYASLAN MARINE
- Category: Motor Yacht
- Model Year: 2027
- YearBuilt: 2027
- Country: Turkey
- Fly Bridge: 1
Dimensions
- LOA: 131' 1" (39.95m)
- LWL: 130' 8" (39.81m)
- Beam: 29' 7" (9m)
- Min Draft: 7' 7" (2.3m)
- Max Draft: 13' 3" (4.03m)
Speed / Weight
- Cruise Speed: 12 Knots Knots
- Max Speed: 14 Knots Knots
- Displacement: 696660.75 Lbs Pounds
- Gross Tonnage: 390.00 Pounds
Accomodation
- Berths: 16
- Heads: 10
- Sleeps: 16
- State Rooms: 10
- Crew Sleeps: 13
- Captains Quarters: No
Hull & Deck
- Hull ID: N/A
- Hull Material: Steel
- Deck Material: Teak
- Hull Color: WHITE
Engine Information
- Engine Count: 2
- Manufacturer: DOOSAN
- Engine Type: Inboard
- Fuel Type: Diesel
